Diesel Intake Manifold Cleaning: Essential Preventative Maintenance for Your BMW

Modern diesel BMWs are engineering marvels, but their sophisticated emissions systems create unique maintenance challenges. One of the most critical yet often overlooked services is intake manifold cleaning and intake port walnut blasting.

The Problem: Carbon Buildup in Diesel Engines

Intake manifolds on modern diesel engines face particularly harsh operating conditions. Two key systems contribute to progressive carbon contamination:

The PCV System and Turbocharger Your engine's Positive Crankcase Ventilation (PCV) system and turbocharger inevitably allow small amounts of oil vapor to pass into the intake system. Under normal conditions, this is perfectly normal.

Exhaust Gas Recirculation (EGR) To reduce NOx emissions, your diesel BMW recirculates exhaust gases back through the intake system. While environmentally beneficial, this introduces soot and combustion byproducts into the intake path.

The Deadly Combination When oil vapor meets exhaust gases in your intake manifold, they combine to form a sticky, carbon-rich deposit. Over time—typically 80,000-150,000 kilometers—this buildup can become severe enough to cause significant issues.

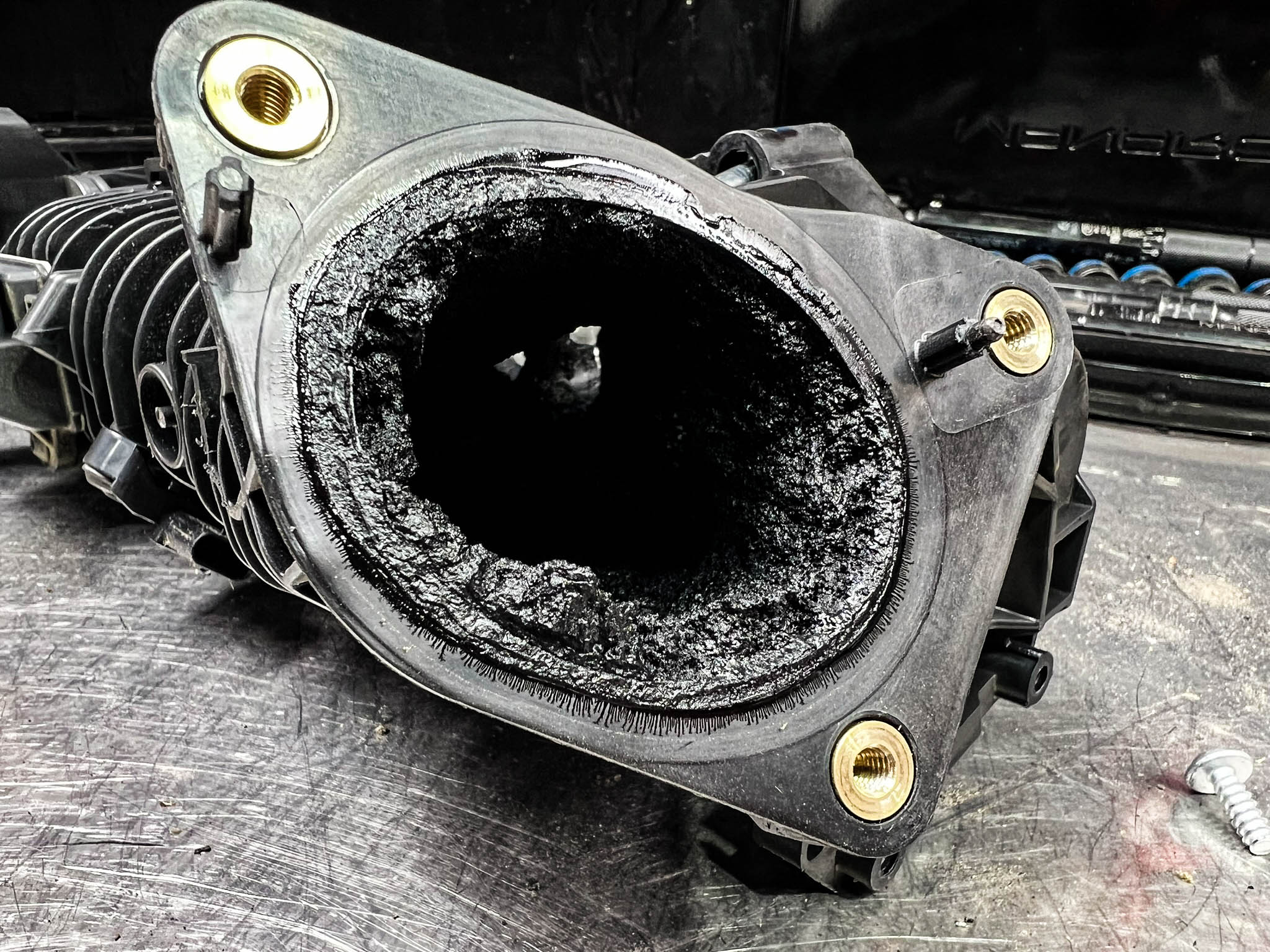

Severe carbon contamination restricting airflow in a diesel intake manifold

Consequences of Neglecting Intake Cleaning

Restricted Airflow Carbon deposits progressively narrow intake passages and coat internal surfaces, reducing the volume of air reaching your cylinders. This starves the engine of the oxygen it needs for efficient combustion.

Disrupted Air-Fuel Ratios Modern diesel engines rely on precise air-fuel ratios for optimal performance and emissions compliance. Restricted airflow throws these ratios off balance, forcing the ECU to compensate—often unsuccessfully.

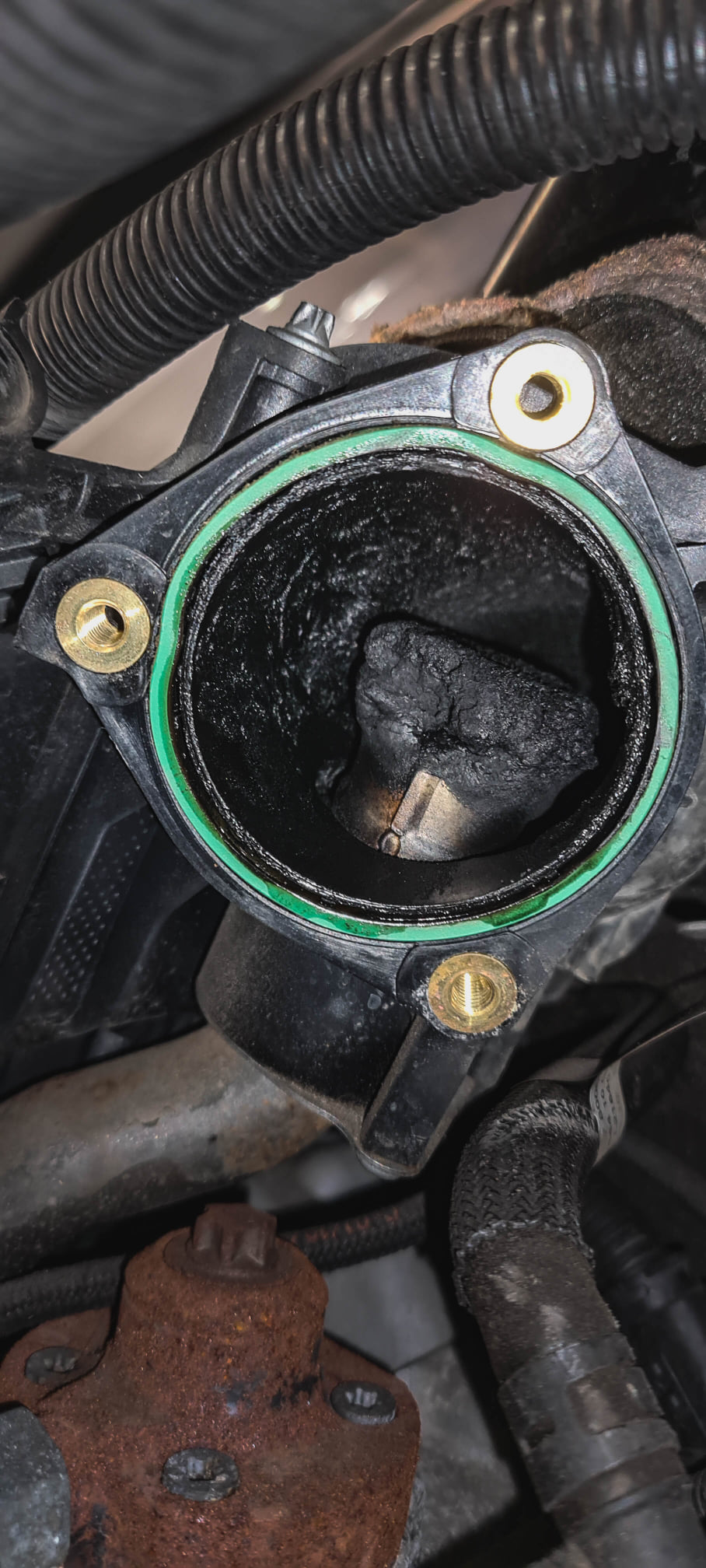

Extreme carbon and soot contamination in EGR system - this is how bad it can get if left unchecked

Performance Degradation The results are noticeable:

• Reduced power output
• Hesitation and lag on acceleration
• Poor throttle response
• Decreased fuel economy
• Increased emissions

Swirl Flap Failure: The Catastrophic Risk Perhaps most concerning is the risk to your intake swirl flaps. These variable geometry plates optimize airflow at different engine speeds but become seized or damaged by carbon buildup. When swirl flaps break free, they can enter the combustion chamber, causing catastrophic engine damage requiring complete engine replacement.

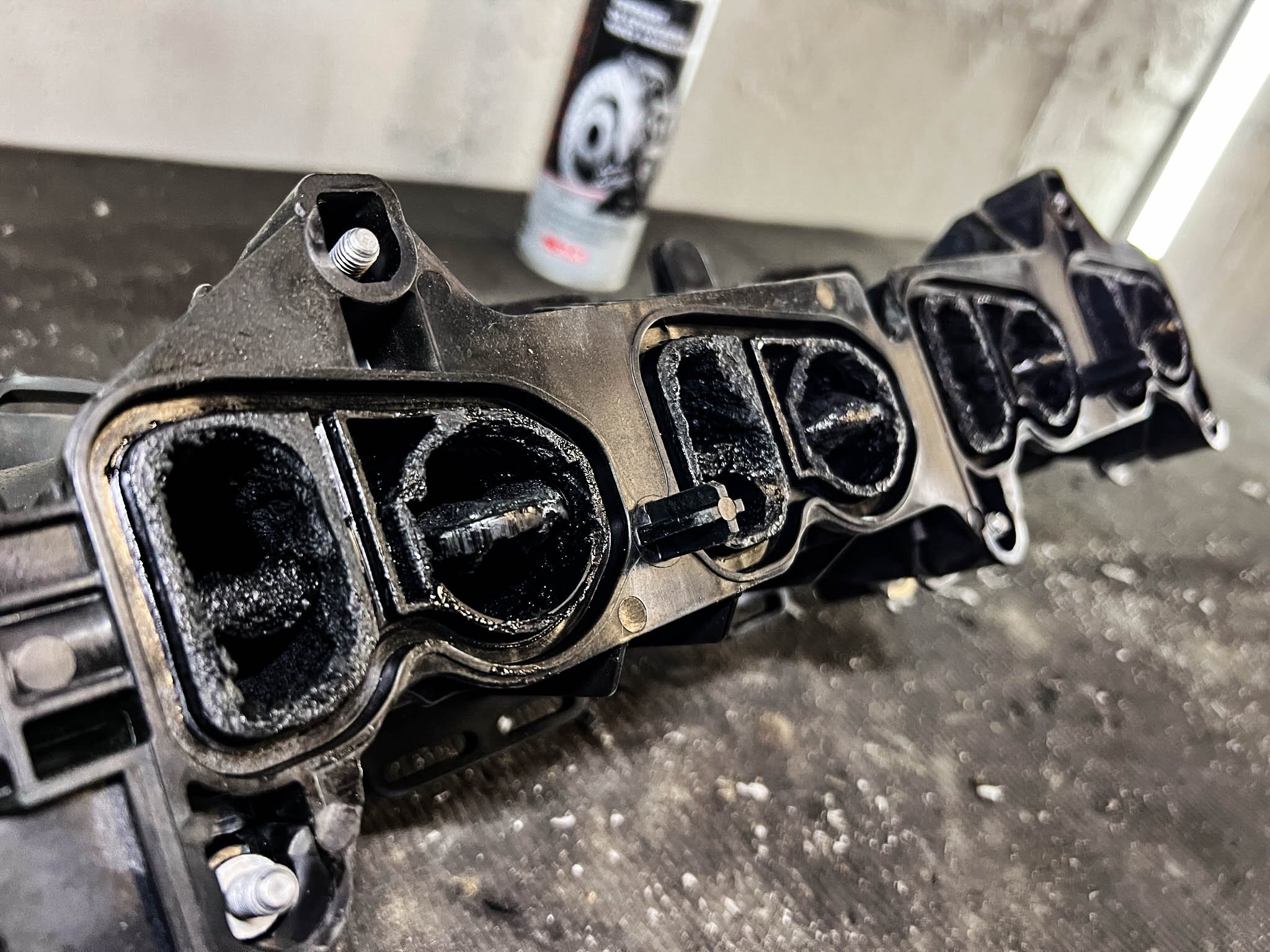

Heavy carbon deposits on swirl flap mechanisms - a ticking time bomb for engine failure

Benefits of Professional Intake Manifold Cleaning

Regular intake system maintenance prevents these issues before they occur:

✅ Preventative Maintenance on Swirl Flaps Thorough cleaning removes carbon deposits that can seize swirl flap mechanisms, dramatically reducing the risk of failure. During service, we inspect swirl flap condition and recommend replacement, removal, or blanking if necessary.

✅ Prevents Air Leaks We replace all intake manifold seals and gaskets during service, preventing vacuum leaks that can cause rough running and trigger check engine lights.

✅ Improves Performance and Fuel Economy Restored airflow allows your engine to breathe properly again. Most customers report noticeably improved throttle response and better fuel consumption immediately after service.

✅ Reduces or Eliminates Lag and Hesitation With proper air delivery restored, turbo lag and hesitation on acceleration are dramatically reduced or eliminated entirely.

Our Comprehensive Intake Cleaning Service

Intake Manifold Removal and Inspection We completely remove your intake manifold to assess contamination levels. This allows us to inspect components that are impossible to see with the manifold installed, including swirl flap condition and EGR passage contamination.

Chemical Cleaning The intake manifold undergoes intensive chemical cleaning to dissolve and remove all carbon, oil, and soot deposits. We ensure all passages are completely clear and swirl flaps move freely.

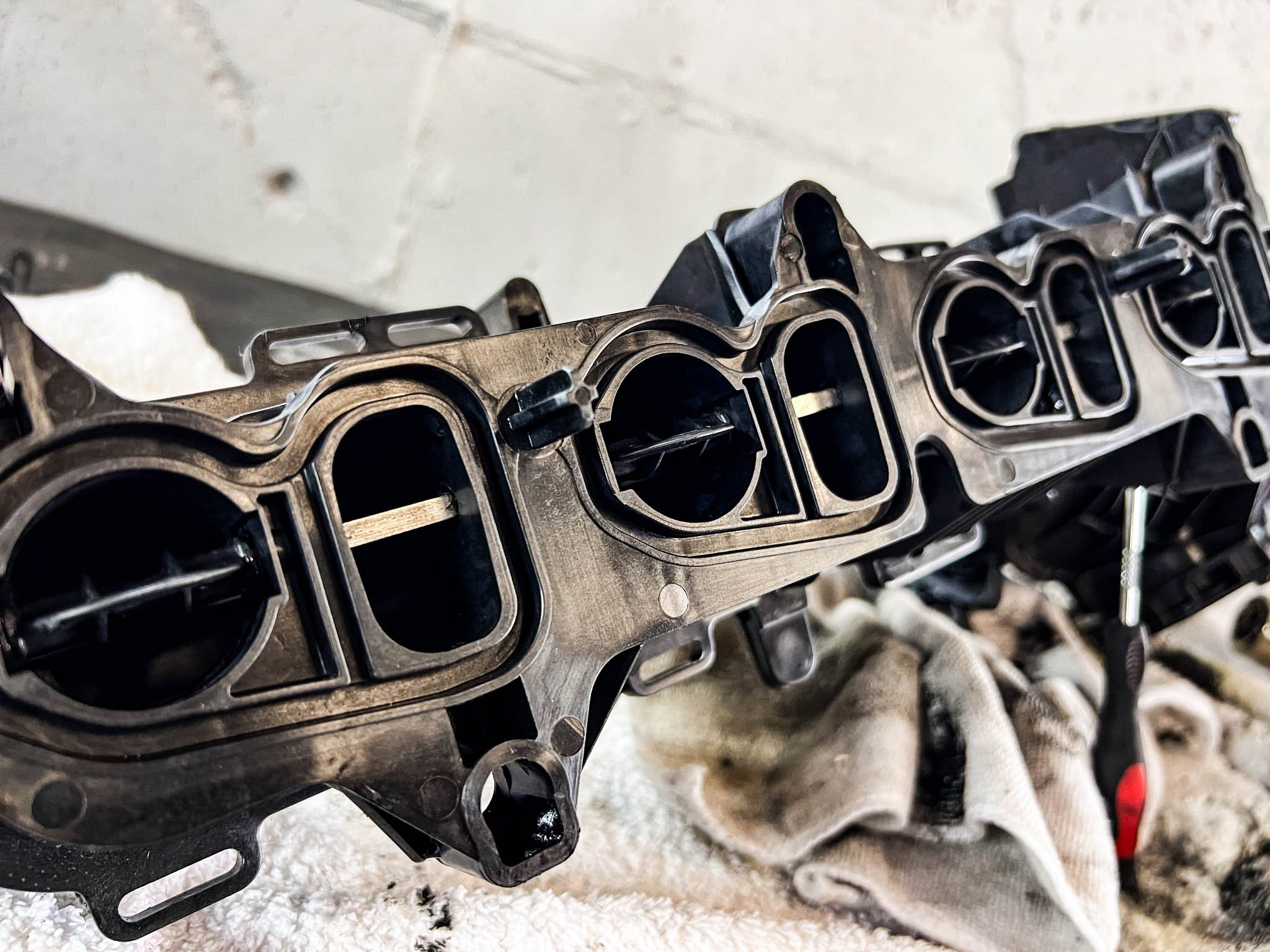

Intake manifold undergoing professional chemical cleaning to restore like-new condition

Intake Port Walnut Blasting For engines with significant valve and port contamination, we offer professional walnut shell blasting services. This gentle yet effective media removes carbon deposits from intake valves and ports without damaging aluminum surfaces.

Professional walnut blasting equipment removing carbon deposits from intake ports and valves

Complete Seal Replacement All intake manifold gaskets, seals, and O-rings are replaced with OEM or premium aftermarket components. This prevents vacuum leaks and ensures optimal sealing.

Swirl Flap Solutions Based on our inspection, we provide recommendations for your swirl flaps:

• Replacement: For damaged or seized flaps
• Removal/Blanking: For preventative peace of mind
• ECU Remapping: To optimize engine operation if flaps are removed

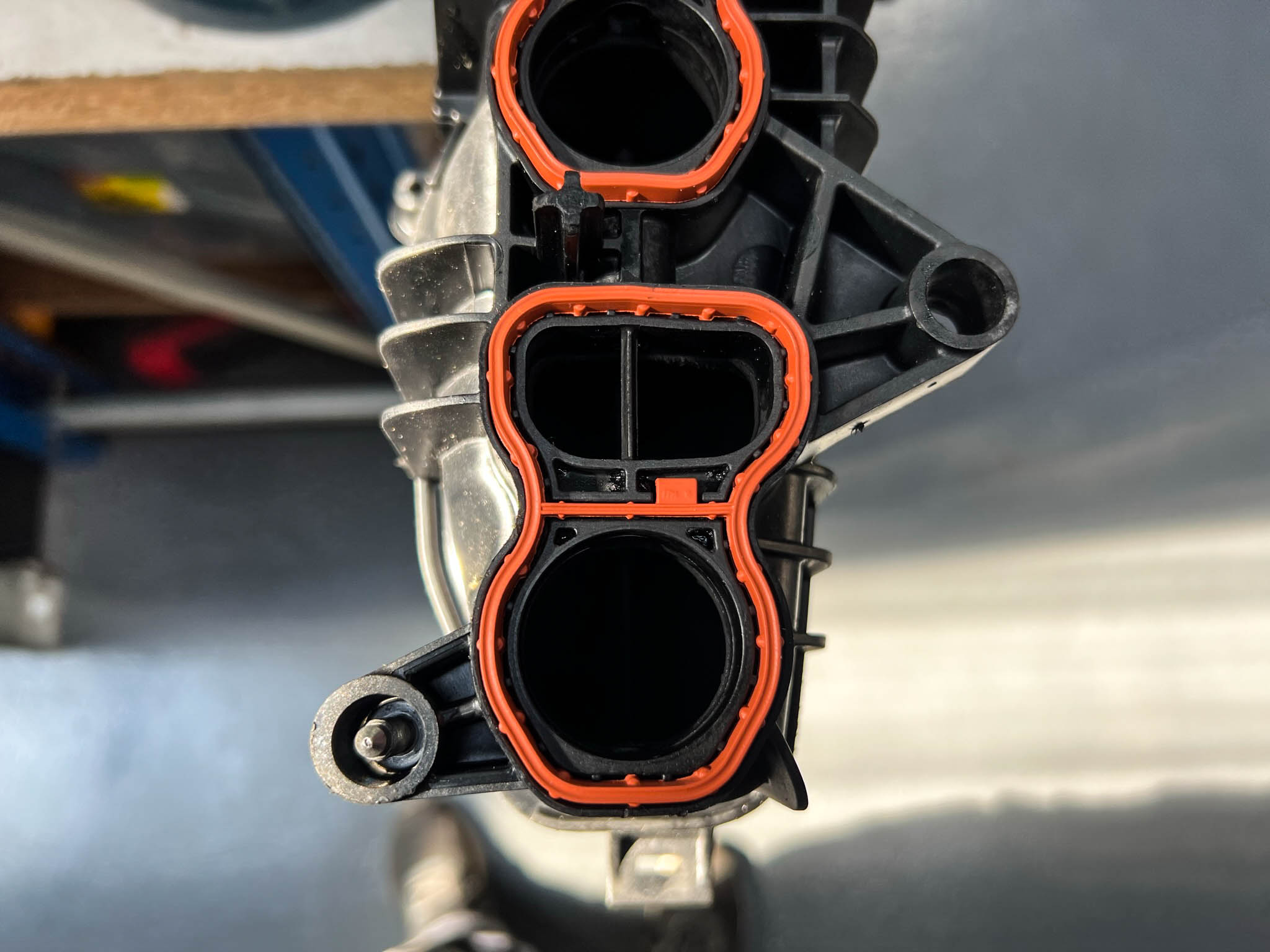

Swirl flap removal with blanking plates - eliminating the risk of catastrophic failure permanently

EGR System Inspection We also inspect your EGR cooler and pipes. Heavily contaminated EGR systems are cleaned or replaced as needed to prevent future intake contamination.

Recommended Service Interval

We recommend intake manifold inspection and cleaning every 100,000 kilometers for diesel BMWs. This interval provides the optimal balance between preventative maintenance and cost-effectiveness.

However, you should consider earlier service if you experience:

• Noticeable power loss or reduced performance
• Hesitation or lag on acceleration
• Decreased fuel economy
• Rough idle or uneven running
• Check engine lights related to airflow or EGR issues
• Excessive black smoke from the exhaust

The Walnut Blasting Difference

Traditional intake cleaning methods can't address carbon buildup on intake valves and in intake ports. Walnut shell blasting uses crushed walnut shells—a soft, biodegradable media—propelled at high velocity to remove deposits.

Why Walnut Shells?

• Soft enough not to damage aluminum heads or valves
• Effective at removing stubborn carbon deposits
• Biodegradable and environmentally friendly
• Completely removed by vacuum during service

The Results Intake port walnut blasting can restore intake valve sealing and airflow to near-factory specifications, dramatically improving engine performance on high-mileage diesel engines.

Investment in Longevity

Professional intake manifold cleaning represents a fraction of the cost of potential failures:

• Intake Manifold Cleaning Service: From €285
• Walnut Blasting Service: From €300 (optional)
• Swirl Flap Delete: From €280 (optional)

---

Book Your Intake Manifold Cleaning Service

Ready to restore your engine's performance? View our complete intake manifold cleaning package with transparent pricing.

View Product & Pricing →

---

Contact M Coding Ireland today to:

• Schedule your intake manifold inspection and cleaning
• Discuss walnut blasting services
• Get expert advice on your specific vehicle's needs

Protect your investment with professional diesel intake system maintenance from Ireland's BMW diesel specialists.
